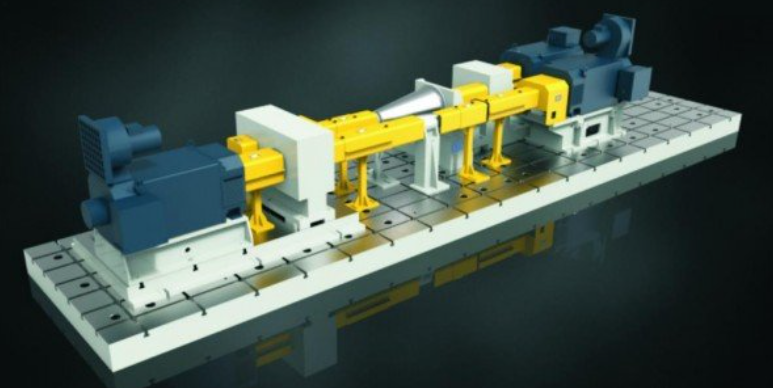

SSCD 30-1000/4500 30KW 286NM New Energy Motor Test Bench & Test System
Introduction
The system adopts modular design, according to the latest test standards at home and abroad, combined with the user's test requirements, it is mainly used in the development and research test of vehicle electric drive system (motor and its controller) conventional performance test, durability and load test, and other certification tests.
TCM1000 new energy power test system is a test and test system developed by our company for new energy vehicle three-electric system test. It can provide load simulation, motor and controller dynamic performance calibration, efficiency analysis, responsiveness test, reliability test, and so on for the output of the system energy dynamic force system. The system synchronously measures the speed torque, electric parameters, temperature, and other parameters of the measured motor.
TCM1000 New energy power testing system for an electric vehicle with a motor, permanent magnet synchronous motor, ac asynchronous motor, and other types of motors, and its form a complete set of controller parameters measurement, complete M‐S test, dynamic test, the test speed torque ripple, the efficiency test, temperature rise test, locked-rotor test, electrical feedback test, etc.; Help users to effectively evaluate the performance of the corresponding products.
Typical Applications:
-
Research on motor performance test and control
- Motor efficiency evaluation
- Feed performance evaluation of motor system
- Motor durability assessment, etc
Flow Chat

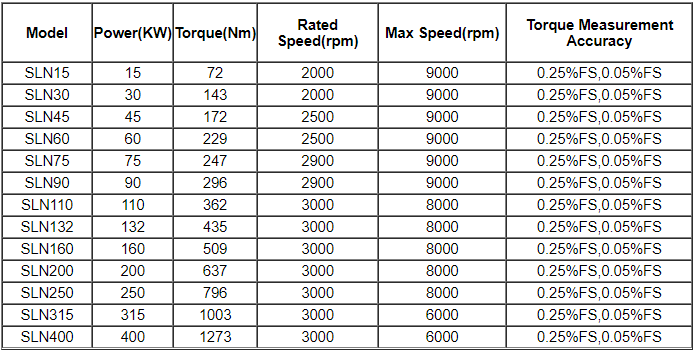

Dynamometer selection
◆ Output power formula: P2= N *T/ 9.55N: speed (r/min)T: torque (N.m)
◆ Efficiency formula: η=P2/P1*P2: output power (W)P1: input power (W)
◆ Efficiency experience value: series motor: < 65% hood pole motor: < 30%
◆ Estimated induction motor torque: Tmax=(P2*9.55)/(NO *0.9)*2 times NO: no-load speed
◆ Estimated series motor torque: Tmax=(P1*η*9.55)/(NO *0.6)*2 times NO: no-load speed
◆ Estimate dc motor torque: Tmax=(U*I*η*9.55)/(NO *0.5)*2 times I: rated current
FAQ
Q:What’s the minimum order quantity for our cooperation?
A: We support small trail order of 1 pcs for stock products.
Q: How can I learn more about the products?
A: Please leave your email and we will send you your electronic sample book.
Q: What’s your payment term?
A: Normally 30% T/T deposit, pay in full before shipment.
Q:What’s the lead time for my orders?
A: Dynamometers production cycle is 6-8 weeks, sensors prodction cycle is 2-3 weeks, other products please contact with us.
Q: How do we get the overall solution of the test bench?
A: Leave us your email, our technical staff will communicate with you about the detailed plan.
Q:Can I come to visit your factory?
A: Sure, you are always welcome to have a visit.
About Us
SeeLong Intelligent Technology (Luoyang Henan) Co., LTD., is a professional production of automotive power system test equipment high technology services enterprises. SeeLong is located in the Peony City(famous for peonies) -- Luoyang, which is also the ancient capital of 13 dynasties.
Why Choose Us
After years of development and accumulation, the company has become a well-known powertrain test equipment production enterprises. Specializing in engine test, transmission test, energy storage test, controls and electric motor test and other test equipment research, development and production service. The company has established long-term cooperation with tsinghua university, Shandong university and many other domestic scientific institutions. We have successfully passed the ISO9001 Quality System certification, obtained a dozen of invention patents and two software copyrights. We have provided professional services and equipment for more than 100 users at home and abroad and which is ongoing now and will continue in the future.
Prospect of Cooperation
Friendly cooperation provides you both high quality products and long-term professional after-sales service.
